Fully Automatic Temperature Regulation Type Industrial Dehumidifier 20kg/h
Main Parameters(Test condition: T=27℃,RH=70%)
| Model | DJFT-3881E | DJFT-4881E |
| Nominal Dehumidifying Capacity | 15kg/h | 20kg/h |
| Power Supply | 380V-50Hz |
| Rated Input Current | 19A | 26.3A |
| Rated Input Power | 7.2KW | 10KW |
| Work Temperature | 5-38℃ |
| Circulating Airflow | 4000m3/h | 5600m3/h |
| Drainage Mode | external soft tube connection, drain continuously |

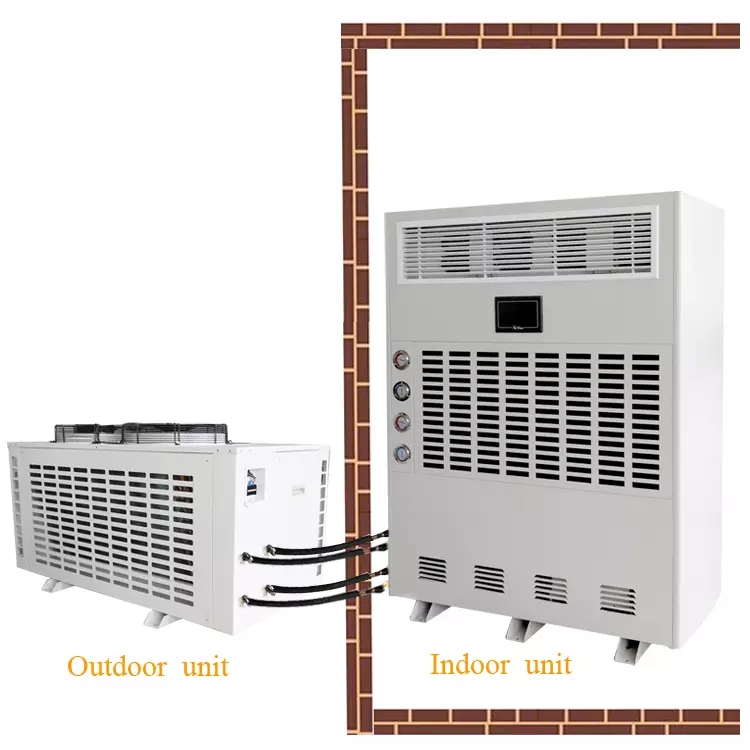

| Overall Dimension | Indoor Unit: 1480*900*2030(mm) Outdoor Unit: 1600*970*1030(mm) |
| Gross Weight | 250kg | 300kg |
| Net Weight | 220kg | 270kg |
| Applicable Scope | 200-280m2 | 280-350m2 |
| Compressor | Named compressor |
| Automatic Defrost | Start when environment temperature below 18℃ |
| Mobile Mode | fixed |
| Wind Direction | Front input top output |
| Design | touch screen, humidity and time automatic control |
| Packaging | Wooden Case |
Features
Temperature conditioning industrial dehumidifier is a auto adjusting device according to temperature and humidity of environment, temperature control accuracy to ± 1℃, humidity control accuracy to ± 3~5% RH, it's a perfect machine for the area like electric, labtoratory, scientific research, medicine industry, workshop and warehouse etc.
- Humanization design: It's high-efficiency and energy-saving running by multistage capacity adjustment according to real load capacity.
- Eco-friendly: Use updating green refrigerant R407c/R134a, it can import freshing air and recycle energy to keep air freshing and natural.
- Intelligent control: automatic control sysyem integrated by world famous brand eletric components and parts, it can be programmed controlled according to cutomer's requirement. Various of control way with easy operation by touch screen, and has configurable communication interfaces for long-range control.
- Silence running: the unit use double system of "Panasonic" high efficiency compressor and low noise efficient fan on outdoor unit, and optimization designed with extensive high heat exchange rate parts by sound deadening processing.
- Easily maintaining: the unique design of unit body to separate the refrigrating system and air system, it can be maintained and repaired when the unit running, low malfunction rate.
- Various type: ODM & OEM welcomed.
Specification
Fuda dehumidifiers are effective solutions to environmental control problems. The ranges of units are high capacity dehumidifiers, made to operate at high efficiencies by removing moisture from the air through the refrigeration process. Than fan draws the moist air through the cold evaporator coil, which cools the air below its dew point. Moisture forms on the evaporator coil and is collected in condensate tray before draining away through the condensate tube. The cooled air then passes through the hot condenser coil where it is reheated using the same energy removed during the cooling phase, plus the additional heat generated by compressor. The air is, therefore, discharged from the dehumidifiers at a slightly higher temperature with a lower absolute humidity than that which entered. Continuous circulation of air through the dehumidifier gradually reduces the relative humidity within the area.
Application
Industrial temperature conditioning dehumidifier is widely used in the area which need both humidity and temperature controlling. Theoretically, the machine can control the room RH from 45%~60%, and temperature from 5℃~35℃. Don't need to install additional air conditioner equipment. All settled by one machine.
Process Flow
User Friendly Control System
Contact us now, we will provide thorough solutions for your air temperature and humidity.
