DP<-60℃ Low Dew Point Lithium Battery Industry Desiccant Dehumidifier
About Lithium-ion Battery (Li-ion)
In the 21st century, humanity has become an engine, participant, and witness of the revolution in the energy sphere. We harness renewable energy sources (RES) such as sun, wind, and water movement. In recent years we have begun to understand the importance of preserving the environment in which we live. One particular area of focus is the increasing use of electrified means of transport, this is set to become an important step forward in the goal of reducing inner city pollution.
In the whole technological chain of the power system, from production to the final consumer, the task of accumulating generated energy (including mobile energy, such as gadgets and electric vehicles) and its use has become increasingly critical towards achieving the goal of reducing carbon footprints. The most common energy storage element in production today is the lithium-ion battery (Li-ion).
Contemporary Amperex Technology Co., Limited (CATL) is a global leader in the development and manufacturing of lithium-ion batteries, with businesses covering R&D, manufacturing and sales in battery systems for new energy vehicles and energy storage systems. The company is committed to providing cutting-edge solutions for global new energy applications. As a qualified supplier of desiccant dehumidifier of CATL, Fuda have provided CATL with hundreds of sets of desiccant dehumidifiers.

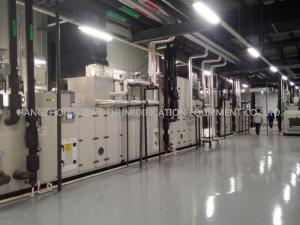

Battery Dry Rooms
The development and manufacturing of lithium batteries needs to take place in ultra low humidity dry rooms, regardless of whether it is a small R&D lab environment or a large scale production facility.
Most manufacturers need the dry rooms to be maintained at a dew point of -40°C, and the industry standard could be even lower in the years to come. We have delivered dry rooms capable of -60°C, and have the best technology for the potential demands of the future.
Expertise in every application
Every different kind of lithium battery requires a different manufacturing environment. We provide market-leading technology for the entire range of applications, including:
- Consumer electronics
- Hybrid and electric vehicles
- Electric grid storage
- Forklifts
- Telecoms
- Medical devices
- Power tools
- Electric bikes and wheelchairs
Specifications:
| Model | ZCH-35000 |
| Total Process Airflow (m³/h) | 39375 |
| Requirements | T=5-28℃, RH≤2% |
| Supply Airflow (m³/h) | 35000 |
| Fresh Airflow (m³/h) | 14000 |
| Return Airflow (m³/h) | 25375 |
| Parameters of Supply Air | T=15℃,TL≤-60℃ |
| Rotor Process Airflow (m³/h) | 1# Rotor | 14000 | 2# Rotor | 35000 |
| Regeneration Airflow (m³/h) | 4600 | 4375 |
| Regeneration Temperature℃ | 120-130 | 130-140 |
| Regeneration Steam Consumption (Kg/h) | 190 | 180 |
| Power of Driving Motor (kw) | 0.2 | 0.2 |
| Power of Regeneration Fan (kw) | 5.5 |
| Power of Dehumidification Fan (kw) | 11 |
| Power of Process Blower (kw) | 30 |
| Cooling Load (kw) | 616.1 |
| Chilled Water Consumption (T/h) | 106 T≤7℃ |
| Installed Power(kw) | 46.9 |
| ESP (Pa) | 700 |
User Friendly Automatic Interface Control System:
We can provide the technical design for dehumidification according to your requirements.
